Ionetrics Annotator CL Base

CameraLink Data Annotation and Acquisition

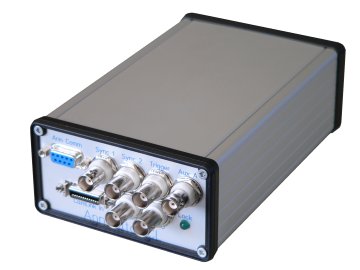

Annotator CL

Features

  • Ideal for instruments with meta-data annotation and time tagging needs
    • high speed cameras
    • spectrometers
    • radiometers
  • Accepts data from CameraLink
  • Accepts data from non-CameraLink sources
    • Generic TTL/LVTTL/LVDS inputs are converted to CameraLink
    • Up to 4 16-bit channels of generic TTL/LVTTL/LVDS input can be connected
    • Typical use is for ADC inputs (user supplied ADC, or the Preamp200)
    • ADC inputs are annotated and formated to a standard CameraLink output data stream
    • Contact for more info on an interface to your measurement system
  • Common CameraLink output format for all input types
  • Annotation data injected directly into the digital data stream:
    • IRIG referenced time stamp with flexible triggering options
    • 32-bit scan or frame counter
    • User defined ancillary, meta data, and status bits
  • CameraLink Repeater
  • CameraLink Video Splitter
  • CameraLink Signal Breakout Box
  • FPGA based real-time clock
    • Synchronized to modulated IRIG-B input if present
    • Operates in a free running mode in the absence of an IRIG input
    • Event time accuracy of ±25 microseconds

Inputs

  • CameraLink data stream
  • 4 high-speed serial (SPI) or 2 parallel (16-bit) TTL or LVTTL input ports
  • Modulated IRIG-B time code
  • Trigger

Outputs

  • Master CameraLink Annotated Data Stream
  • Slave CameraLink Annotated Data Stream
  • Sync 1 (User selectable data sync)
  • Sync 2 (User selectable data sync)

Software Support

  • Can function standalone with user supplied software
  • Works with existing frame grabber with no software rewrite
  • Software toolkit available for end user customization

RS232 Control Port


libAnnotatorComm
Unified communications library for the Annotator line of products

Annotator CL Detailed Description
Complete feature callout for the Annotator CL
